Flash Support Group AF9201 / AF9201C On-Board Programmer

In-Circuit Programming of SPI Flash and Microcontrollers

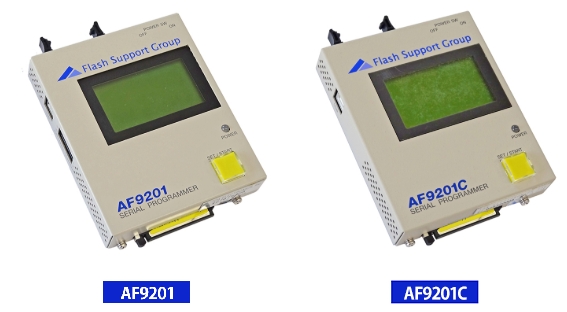

The Flash Support Group AF9201 and AF9201C are compact on-board device programmers for writing compatible flash memory and microcontrollers already mounted on circuit boards. They support a range of target programming interfaces depending on the selected device algorithm.

A dedicated algorithm card provides a standard 1 Gbit (128 MB) data buffer, while SPI Flash programming supports single, dual and quad operation where the target device and algorithm permit. The units can operate via a USB-connected PC and are designed for one target at a time.

1 Gbit Standard buffer (128 MB)
1 device Single-target programming
USB 2.0 PC communication interface
AF9201 only External trigger / result I/O

The AF9201 has an external control interface for trigger-based programming and result signals, making it suitable for integration with sequencers or automation controllers. This interface is not provided on the AF9201C.

A published example for a 64 Mbit SPI Flash reports a 35-second program-and-verify cycle with AF9201/AF9201C, compared with 142 seconds for a conventional instrument; actual times depend on memory type and test setup. For socket-based programming of unmounted devices, compare the AF9724 / AF9725 / AF9711 programmers.

On-Board Flash Programming

Programs supported memory and microcontrollers without removing them from the board.

Multiple Serial Protocols

Supports device-dependent SPI, UART, I²C, JTAG, SWD and clock-synchronous programming.

Single / Dual / Quad SPI

Supports appropriate SPI Flash operating modes using a compatible algorithm.

Dedicated Algorithm-Card Buffer

Includes a 1 Gbit (128 MB) standard buffer via a dedicated algorithm card.

USB-Connected PC Control

Uses USB 2.0 and supplied control software for setting and programming tasks.

AF9201 External Control

Provides external trigger and result interface for automated programming; not on AF9201C.

PCB Assembly Programming

Write supported flash devices after circuit-board assembly.

Firmware Provisioning

Load application or boot firmware into supported microcontrollers and serial memory.

SPI Flash Production Writing

Program compatible single, dual or quad SPI Flash devices.

Pre-Assembly Final Verification

Combine programming and verification in a manufacturing workflow.

PLC / Sequencer Integration

Use the AF9201 external I/O to coordinate a programming operation with line control.

Engineering and Rework Benches

Program or reprogram supported board-mounted devices in a development or service setup.

Specification AF9201 AF9201C
Programming configuration One device at a time One device at a time
Standard buffer 1 Gbit (128 MB), dedicated algorithm card 1 Gbit (128 MB), dedicated algorithm card
Algorithm-card use One device series per card; further series may require a separate CF card One device series per card; further series may require a separate CF card
Target device families Supported Flash ROM, flash MCU, serial/SPI Flash Supported Flash ROM, flash MCU, serial/SPI Flash
Supported programming methods SPI / UART / I²C / JTAG / SWD / CLK sync; device-dependent SPI / UART / I²C / JTAG / SWD / CLK sync; device-dependent
SPI modes Single / Dual / Quad, where supported Single / Dual / Quad, where supported
Target voltage TVCC1 1.5–5.0 V; max. 250 mA 1.5–5.0 V; max. 250 mA
Target voltage TVCC2 1.5–5.0 V; max. 250 mA 1.5–5.0 V; max. 250 mA
PC interface USB 2.0 USB 2.0
Memory-card interface Available Available
External trigger/result interface Yes No
Master file name shown on LCD / software Yes No
Standard target cable, USB cable and software Included Included
External control cable Included Not included
AC adapter input 100–240 V AC, 50/60 Hz 100–240 V AC, 50/60 Hz
Unit power input 7 V DC 7 V DC
Power consumption Up to 3 VA Up to 3 VA
Dimensions (D × W × H) 100 × 120 × 22 mm 100 × 120 × 22 mm
Weight Approx. 210 g, excluding accessories Approx. 210 g, excluding accessories
Manufacturer-stated warranty 1 year 1 year
