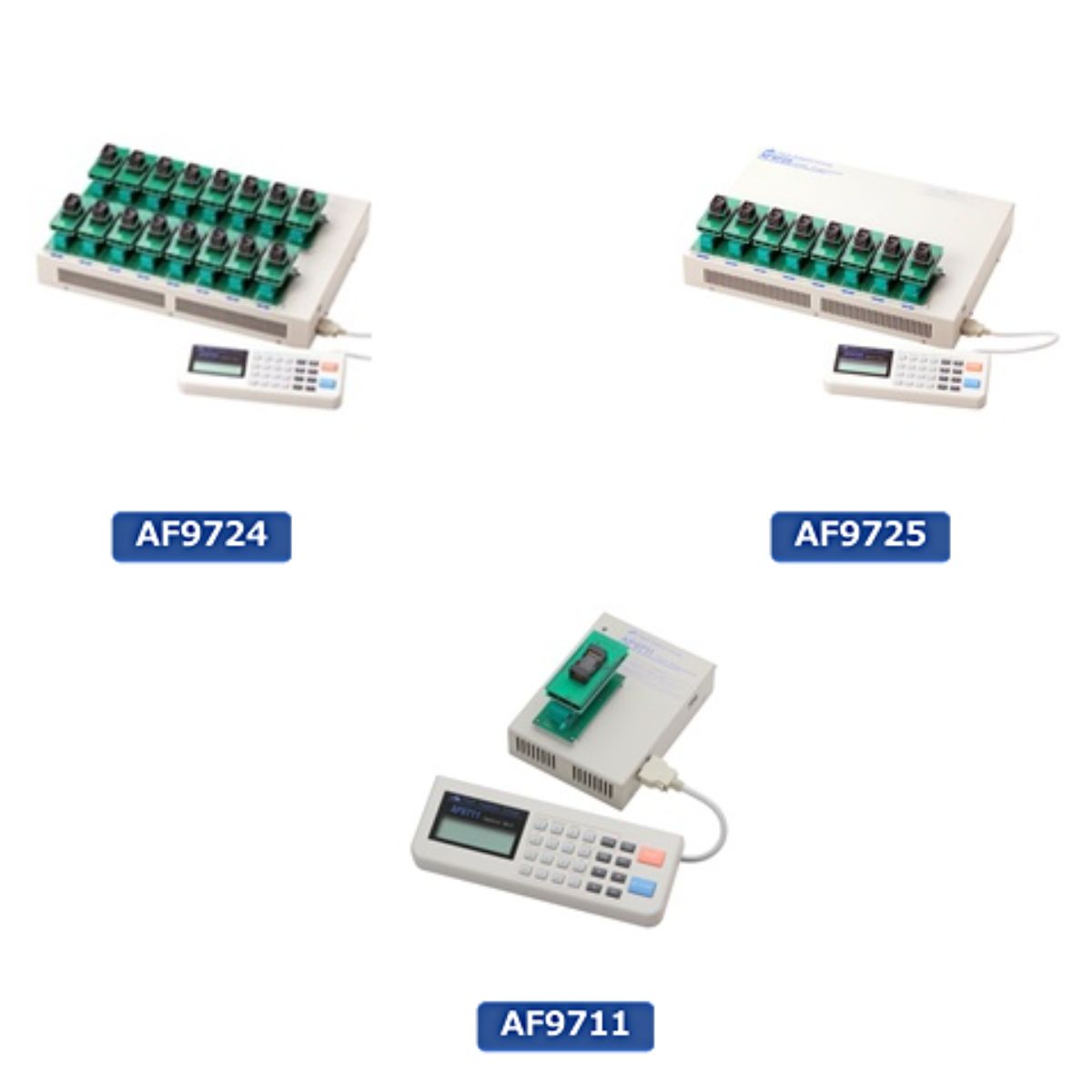

Flash Support Group AF9724 / AF9725 / AF9711 Device Programmers

Type: Device Programmer

Supplier / Manufacturer: Flash Support Group

Model: AF9724 / AF9725 / AF9711

Industries & Applications:

Contact Us

Cutting-edge programming solutions

Flash Support Group is a top-tier manufacturer, providing leading device programming solutions tailored for engineering and manufacturing needs. We specialize in designing both manual and automated device programmers that enhance efficiency and precision across various applications. Our commitment to quality and innovation distinguishes us in the global market, backed by our association with TOA ELECTRONICS, Inc., ensuring superior products and services.

・Target devices : Flash microcontrollers, NOR / NAND Flash and Serial Flash, etc. of various manufacturers ・High speed writing and reading is possible due to the fastest R/W cycle speed of 80nsec, 10 times faster than the previous AF9845 model, and the maximum 16-bit data bus access. ・Available in both stand-alone and PC remote mode. ・Installed 1Gbit as a standard.* Optinal up to 16Gbit ・A concurrent function is incorporated that begins automatic processing when the device mounting is detected.* Limited to the case of using 2 slots ・Utilization of the conversion adapters of previous products through combined use with DIP conversion units.

		AF9724	AF9725
Buffer Memory	Standard	1Gbit
	Optional	16Gbit
Sockets		Up to 16	Up to 8
External Interface		USB2.0 and USB host function
Operating Voltages		AC100 - 240V
Frequency Range		50 - 60Hz
Power Consumption		Max. of 200VA
Size (D×W×H)		330x465x67mm
Weight		approx. 6kg	approx. 5.9kg
