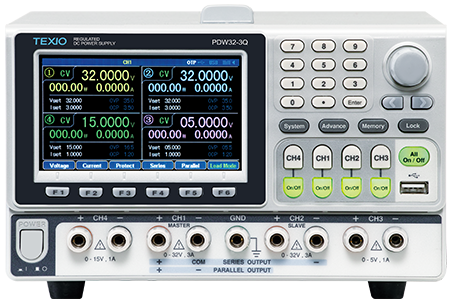

TEXIO Multifunctional DC regulated power supply PDW Series
The PDW series provides precise DC power with low noise and ripple. It supports diverse tests with its electronic load function and battery charge/discharge capabilities. Features include high-resolution settings, series/parallel tracking, USB and standard interfaces, and protective functions. A color TFT LCD aids operation, while the USB port facilitates connectivity. Ideal for various testing applications.● High resolution: Setting 1mV/0.1mA, Reading 0.1mV/0.1mA ● Equipped with electronic load function (CH1, CH2 / CC, CV, CR mode) ● Low noise/low ripple: ≦350μVrms/≦2mArms (for PDW32-3DG) ● Series/parallel tracking function (CH1-CH2) ● Output delay/output monitoring/output record function ● Protection function: OVP/OCP/OTP/OPP (when loading) ● Sequence function (CH1/CH2) ● Internal memory function (panel settings/sequence/output delay/output record) ● Power output from USB power supply port (3CH model) ● Remote sensing function (1CH model, 3CH model except PDW32-3TG) ● 4.3 inch color TFT LCD ● Standard interface: USB, RS-232C, GP-IB, LAN, external I/O ● High resolution: Setting 1mV/0.1mA, Reading 0.1mV/0.1mA ● High resolution: Setting 1mV/0.1mA, Reading 0.1mV/0.1mA ● Equipped with electronic load function (CH1, CH2 / CC, CV, CR mode) ● Low noise/low ripple: ≦350μVrms/≦2mArms (for PDW32-3DG) ● Series/parallel tracking function (CH1-CH2) ● Output delay/output monitoring/output record function ● Protection function: OVP/OCP/OTP/OPP (when loading) ● Sequence function (CH1/CH2) ● Internal memory function (panel settings/sequence/output delay/output record) ● Power output from USB power supply port (3CH model) ● Remote sensing function (1CH model, 3CH model except PDW32-3TG) ● 4.3 inch color TFT LCD ● Standard interface: USB, RS-232C, GP-IB, LAN, external I/O ● High resolution: Setting 1mV/0.1mA, Reading 0.1mV/0.1mA
