SUGAWARA - Pusher ADP Series -

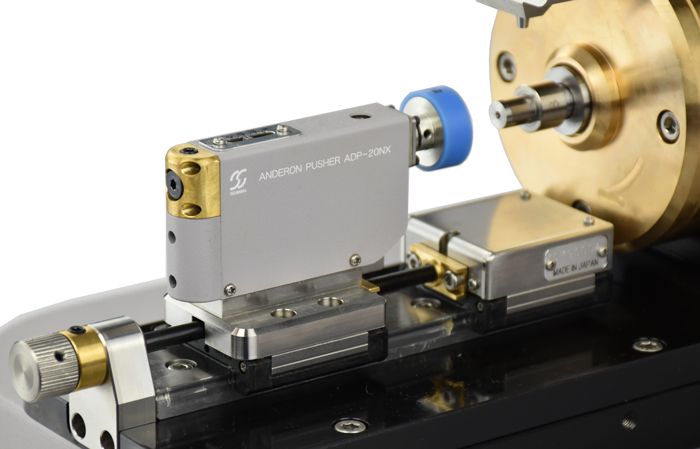

Price : The Sugawara Pusher ADP Series features a proprietary shaft structure that applies stable axial loads to bearing outer rings without tilt, preventing vibrations that could affect L band values. This design ensures the pusher shaft adjusts to the most stable position, significantly improving measurement reproducibility.Pusher ADP-20NX
A pusher with a pusher force of up to 20 N, for bearings of an outer diameter of up to 50 mm. Accurately measures vibration of the miniature bearings of an outer diameter of 8 mm or less, at a light pushing force of 5 N. A pusher with pusher force of up to 200 N, for bearings of an outer diameter of up to 100 mm. A pusher with a pusher force of up to 2000 N, for large-diameter bearings of an outer diameter of up to 220 mm.
A pusher with a pusher force of up to 20 N, for bearings of an outer diameter of up to 50 mm. Accurately measures vibration of the miniature bearings of an outer diameter of 8 mm or less, at a light pushing force of 5 N.Pusher ADP-200NX
A pusher with pusher force of up to 200 N, for bearings of an outer diameter of up to 100 mm.Pusher ADP-2KNS
A pusher with a pusher force of up to 2000 N, for large-diameter bearings of an outer diameter of up to 220 mm.
Exerts a radial load on two points at the outer ring of up to 100 N each, in a downward direction. This is used for measuring bearings such as cylindrical roller bearings, that do not allow for force to be applied on the outer ring in an axial direction.
