Enable everyone to easily evaluate reliability of PCA

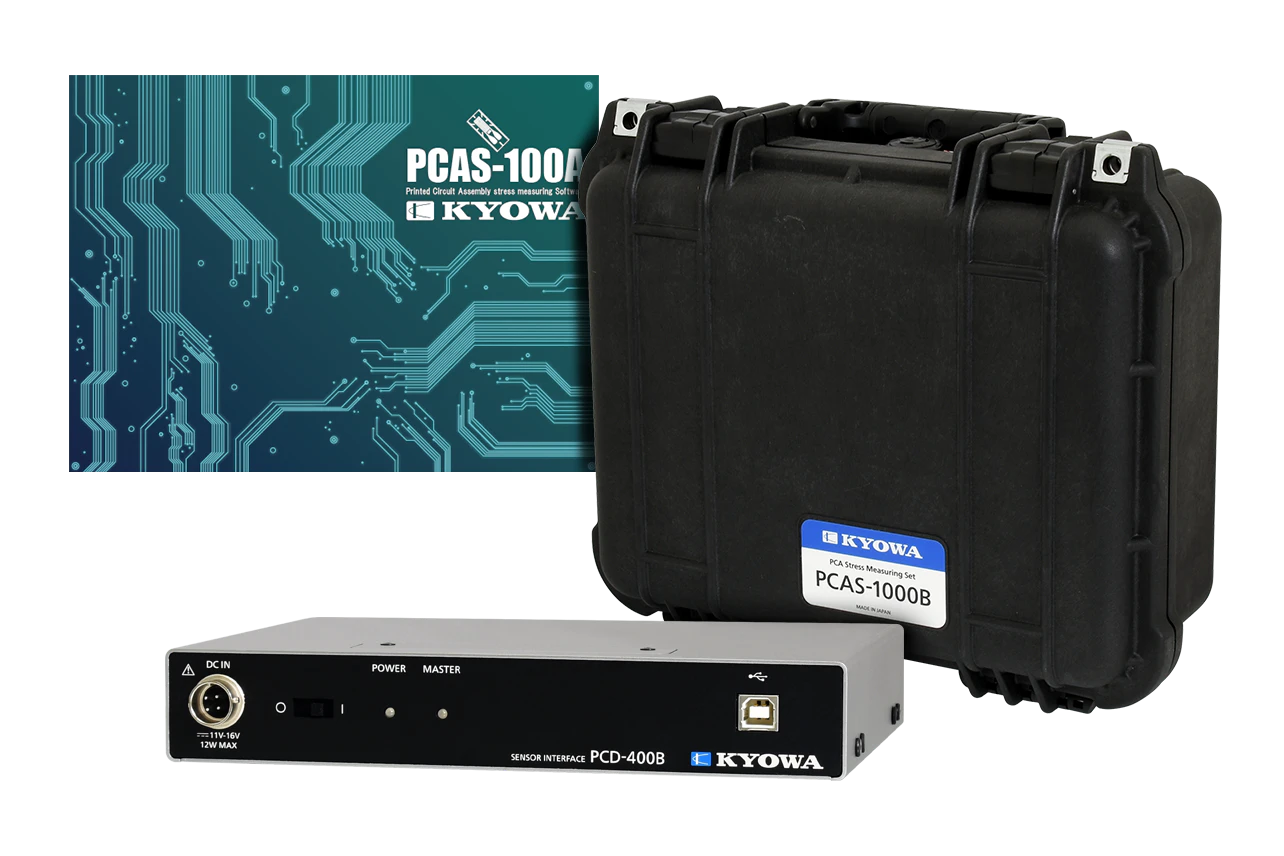

The PCAS-1000B can be used even by a beginner to measure strain, and PCB strain speed and other measurements can be taken easily in accordance with IPC/JEDEC-9704A.* *IPC/JEDEC-9704A defines a method of evaluating strain when assembling, testing, and using a PCB. Excessive strain on a PCB can cause failure, so this is an effective means of evaluating quality and analyzing failure. * The method of evaluating PCBs with strain gages is provided by IPC/JEDEC-9704A. The method can be effectively for various purposes including quality evaluation and trouble analysis.'- Simply follow directions to seamlessly configure instruments, record data, and prepare reports. - Automatically create reports optimal for evaluating PCBs. - A single set is capable of 4-channel measurement, with a maximum of up to 16 channels.
| Measuring Targets | Strain gage and strain-gage transducers |
|---|---|
| Channels | 4 |
| Input Form | Balanced differential input |
| Synchronous Measurement | Up to 4 units by 16 channels |
| Compatible Gage Resistance | Quarter bridge 2-wire system, 3-wire system: 120 Ω Half bridge system, full bridge system: 120 to 1000 Ω |
| Input Connector | D-sub 37-pin connector |
| Bridge Excitation | AC 2 Vrms |
| Gage Factor | 2.00 fixed |
| Balance Adjustment | Resistance: Within ±2% (±10 k ×10-6 strain) Capacitance: Within 5000 pF |
| Balance Adjustment Methods | Resistance: Auto balance Capacitance: CST method (Capacitance self-tracking) |
| Nonlinearity | Within ±0.1% FS |
| Range | 200, 500, 1 k, 2 k, 5 k, 10 k, and 20 k ×10-6 strain – 7 steps Accuracy: within ±0.5% FS |
| Frequency Response | DC to 200 Hz, deviation: Within ±10% |
| Sampling Frequencies | Max. 10 kHz (Synchronous 4-unit sampling for 16 channels at 10 kHz) |
| LPF | Transfer characteristic: 2nd order Butterworth Cutoff frequencies: 10, 30, 100 Hz, and FLAT (4 steps) Amplitude ratio at cutoff point: -3 ±1 dB Attenuation: (-12 ±1) dB/oct. |
| AD Converter | 24 bits |
| Holding Setting Condition | The range and balance adjustment value etc. are written to nonvolatile memory. |
| TEDS | Reads information from TEDS-installed sensors. (Input adapters: UI-10A and UI-11A only) Channel name writing (If the manufacturer’s ID is Kyowa) |
| Interfaces | USB2.0 (Conforms to High-speed USB standards.USB3.0 supported) |
| Stability | Temperature Zero point: Within ±0.2 ×10-6 strain per ºC Sensitivity: Within ±0.05%/ºCTime Zero point: Within ±0.5 ×10-6 strain per 8h Sensitivity: Within ±0.15%/8h |
| Withstand Voltage | 250 VAC for 1 minute between input and case 250 VAC for 1 minute between input channels (If the manufacturer’s ID is Kyowa) |
| Operating Temperature | 0 to 40ºC |
| Operating Humidity | 20 to 85% (Non-condensing) |
| Vibration Resistance | ±29.42 m/s² (3 G) 5 to 200 Hz (12 cycles for each axis, 10 minutes/cycle) *unstacked |
| Power Supply | 11 to 16 VDC Connector type: RM12BRD-4PH (Hirose) |
| Current Consumption | 0.7 A or less (12 VDC) 0.6 A or less (15 VDC) |
| Dimensions | 210 W x 35 H x 157.5 D mm (Excluding protrusions) |
| Weight | Approx. 650 g |
| Degree of Protection | IP30 (JIS C 0920 / IEC 60529) *Except when the one-touch type input adapter UI-55A is connected and when the adapter is not connected. |
| *The specifications apply to the state in which the temperature has stabilized after a preheating time of 1 hour. |
| Channels | 4 |
|---|---|
| Sensor Connection | One-touch type terminals |
| Main Measuring Instruments | PCD-400B/430B EDX-11A/14A/15A (For full bridge only) |
| Measuring Targets | 2-wire quarter bridge 3-wire quarter bridge Half bridge Full bridge Voltage Strain-gage transducer |
| Dimensions | 105 W × 18.5 H × 35 D mm |
| Weight | Approx. 90 g |
