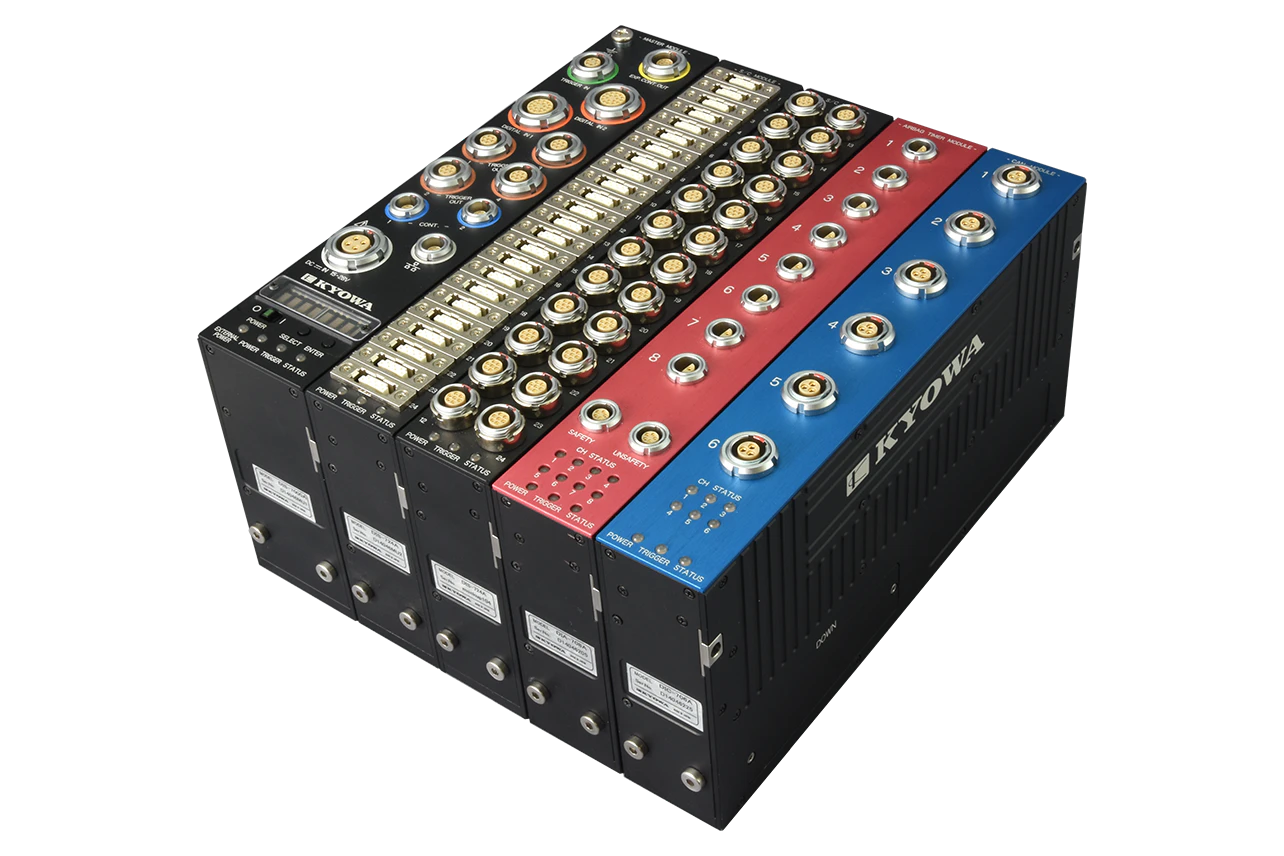

Multi-channel on-board data acquisition system Modularization structure enable to optimize your system
This product t is exceptionally space-efficient, featuring 168 channels in a small footprint of just 290 W × 100 H × 210D (mm) and a weight of approximately 9 kg. This compact and lightweight design makes it an ideal choice for environments where space is at a premium, without compromising on functionality. In terms of data handling, the device excels with its capacity to manage up to 1056 synchronous measuring channels, or up to 999 channels when used with the DIS-70A. This expansive channel support makes it suitable for large-scale data collection and analysis. Furthermore, it is equipped with specialized features like the DIA-708A for precise ignition current output based on preset delay times, and the DIC-706B for recording CAN/CAN FD data. These functionalities ensure comprehensive data capture and processing, catering to a wide range of data analysis needs.'- Compact & lightweight (168 channels in 290 W × 100 H × 210D mm, approx. 9 kg) - High impact resistant: 100 G - Synchronous measuring channels up to 1056 (Up to 999 channels when using DIS-70A) - Outputs ignition current based on the pre-set delay time. (DIA-708A) - Records the CAN/CAN FD data. (DIC-706B)
Perform testing using a special on-board measurement system with impact resistance and that is equipped with various sensors for installation on dummies.
■Master Module DIS-7000A ■Slave Modules DIS-724A-T/L (Signal Conditioner Module) DIA-708A (Airbag Timer Module) DIC-706B (CAN FD Measurement Module) ■Control Software DIS-70A
