Powerful Stretch with Multi-range Technology

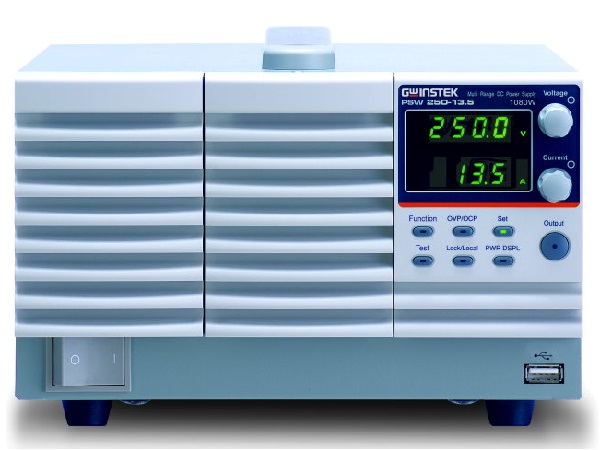

The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products includes eighteen models with a combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W, and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range. As the PSW-Series can be connected in series for a maximum of 2 units or in parallel for a maximum of 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment in various power supply products to accommodate projects with different power requirements.• Voltage Rating: 30V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W • Constant Power Output for Multiple Range (V&I) Operation • CV/CC Priority; Particularly Suitable for the Battery and LED Industry • Adjustable Slew Rate • Series Operation: Up to 2 units (30V, 80V, 160V models only) • Parallel Operation: Up to 3 units • High Efficiency and High Power Density • 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W/720W/1080W • Standard Interface: LAN,USB,Analog Control Interface • Optional Interface: GPIB-USB Adaptor, RS232-USB Cable • LabView Driver
| Model Name | Type | Voltage | Current | Power |
| PSW 30-36 | I | 0 ~ 30V | 0 ~ 36A | 360W |
| PSW 30-72 | II | 0 ~ 30V | 0 ~ 72A | 720W |
| PSW 30-108 | III | 0 ~ 30V | 0 ~ 108A | 1080W |
| PSW 80-13.5 | I | 0 ~ 80V | 0 ~ 13.5A | 360W |
| PSW 80-27 | II | 0 ~ 80V | 0 ~ 27A | 720W |
| PSW 80-40.5 | III | 0 ~ 80V | 0 ~ 40.5A | 1080W |
| PSW 160-7.2 | I | 0 ~ 160V | 0 ~ 7.2A | 360W |
| PSW 160-14.4 | II | 0 ~ 160V | 0 ~ 14.4A | 720W |
| PSW 160-21.6 | III | 0 ~ 160V | 0 ~ 21.6A | 1080W |
| PSW 250-4.5 | I | 0 ~ 250V | 0 ~ 4.5A | 360W |
| PSW 250-9 | II | 0 ~ 250V | 0 ~ 9A | 720W |
| PSW 250-13.5 | III | 0 ~ 250V | 0 ~ 13.5A | 1080W |
| PSW 800-1.44 | I | 0 ~ 800V | 0 ~ 1.44A | 360W |
| PSW 800-2.88 | II | 0 ~ 800V | 0 ~ 2.88A | 720W |
| PSW 800-4.32 | III | 0 ~ 800V | 0 ~ 4.32A | 1080W |
