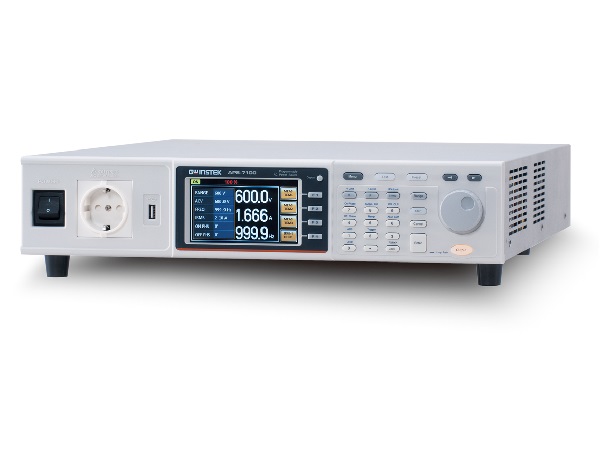

GW Instek APS-7000 Series Programmable Linear AC Power Source

Low-Noise Programmable Linear AC Power for Product Testing

The GW Instek APS-7000 Series provides programmable linear AC power from 500 VA to 3000 VA for testing electronic products under controlled voltage, frequency and transient power conditions.

Four models cover different power requirements: APS-7050 (500 VA), APS-7100 (1000 VA), APS-7200 (2000 VA) and APS-7300 (3000 VA). The linear output design provides low noise and low total harmonic distortion for sensitive electronic test applications.

3000 VA Maximum series output capacity
310 Vrms Standard maximum AC output voltage
500 Hz Standard maximum output frequency
600 Vrms Extended voltage with APS-003 option

Users can create programmed output sequences, simulate transient voltage conditions and configure measurement programs. Built-in measurement functions include voltage, current, power, apparent power, frequency, power factor and crest factor.

Optional APS-003 and APS-004 functions extend the output voltage and frequency ranges, respectively. LAN and supported USB interfaces enable computer-controlled operation, while optional GPIB and serial interfaces expand integration with automated test systems.

500 VA to 3000 VA Output Capacity

Choose from four linear AC power source models to match different electronic test load requirements.

Low-Noise Linear AC Output

Provides low-ripple, low-distortion AC power for product development and sensitive electronic measurements.

Programmable Voltage and Frequency

Controls standard AC output up to 310 Vrms and 500 Hz, with optional extension to 600 Vrms and approximately 1000 Hz.

Sequence and Transient Simulation

Supports programmable output sequences and simulation modes for evaluating equipment under changing input power conditions.

Integrated AC Power Measurements

Measures voltage, current, real power, apparent power, peak current, frequency, power factor and crest factor.

Remote Control and Test Automation

Provides LAN, supported USB connections and optional GPIB or RS-232 interfaces for automated test integration.

Electronic Product Power Testing

Verify equipment operation under controlled AC voltage and frequency conditions.

Audio and Video Equipment Evaluation

Supply low-noise AC power to sensitive electronic products during development and testing.

AC Input Voltage Variation Testing

Evaluate product response to programmed AC input voltage changes.

Frequency Variation Testing

Test electronic equipment under different AC frequency conditions within the configured output range.

Transient Power Condition Simulation

Use programmed sequences to investigate equipment behavior during changes in AC input power.

Automated Power Verification

Integrate controlled AC power output and measurement functions into production or engineering test systems.

Specification APS-7050 APS-7100 APS-7200 APS-7300
Rated Output Capacity500 VA1000 VA2000 VA3000 VA
Standard Output Voltage0–310 Vrms0–310 Vrms0–310 Vrms0–310 Vrms
Standard Output Frequency45–500 Hz45–500 Hz45–500 Hz45–500 Hz
Max. RMS Current, 155 V Range4.2 A8.4 A16.8 A25.2 A
Max. RMS Current, 310 V Range2.1 A4.2 A8.4 A12.6 A
Max. Peak Current, 155 V Range16.8 A33.6 A67.2 A100.8 A
Voltage Extension, APS-003Up to 600 VrmsUp to 600 VrmsUp to 600 VrmsUp to 600 Vrms
Frequency Extension, APS-004Up to 999.9 Hz*Up to 999.9 Hz*Up to 999.9 Hz*Up to 999.9 Hz*
THD, Resistive Load≤0.5% at 45–500 Hz≤0.5% at 45–500 Hz≤0.5% at 45–500 Hz≤0.5% at 45–500 Hz
Voltage RegulationLine: 0.1% F.S.; Load: 0.3% F.S.Line: 0.1% F.S.; Load: 0.3% F.S.Line: 0.1% F.S.; Load: 0.3% F.S.Line: 0.1% F.S.; Load: 0.3% F.S.
Sequence Memory10 sets10 sets10 sets10 sets
Simulation Memory10 sets10 sets10 sets10 sets
Program Memory10 sets10 sets10 sets10 sets
Display4.3-inch TFT LCD4.3-inch TFT LCD4.3-inch TFT LCD4.3-inch TFT LCD
Standard LANSupportedSupportedSupportedSupported
USB HostSupportedSupportedSupportedSupported
USB DeviceConfirm interface configurationConfirm interface configurationSupportedSupported
Optional GPIBAPS-001APS-001APS-001APS-001
Optional Serial InterfaceAPS-002APS-002APS-007APS-007

Standard output ratings are distinguished from optional APS-003 voltage and APS-004 frequency extensions. Maximum output current depends on the selected voltage range and available power. *The manufacturer's recent manual includes a 1000 Hz setting for APS-004, while product marketing materials state 999.9 Hz. Confirm firmware, option configuration and output operating limits before quotation. Interface availability also varies by model.
