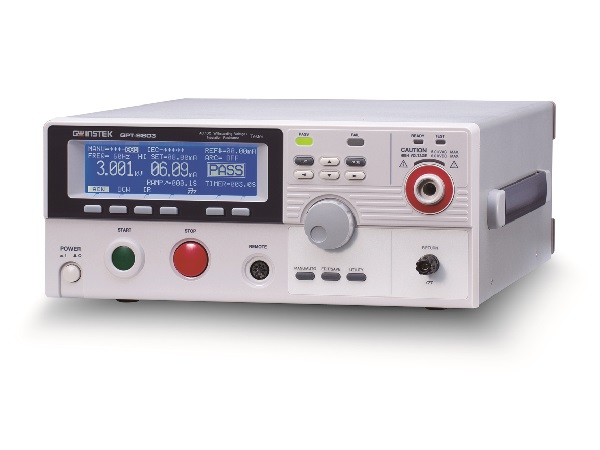

GW Instek GPT-9800 Series Electrical Safety Tester

200 VA AC/DC Hipot Testing for Product Safety Inspection

The GW Instek GPT-9800 Series is a 200 VA electrical safety tester family for AC withstand, DC withstand, insulation resistance and ground bond testing, depending on the model.

The series includes GPT-9801 (AC), GPT-9802 (AC/DC), GPT-9803 (AC/DC/IR) and GPT-9804 (AC/DC/IR/GB). This scalable lineup supports the selection of a focused hipot tester or a more comprehensive unit for electrical product and component inspection.

200 VA Maximum AC test capacity
Up to 5 kV AC AC withstand voltage range
Up to 6 kV DC DC withstand on supported models
100 Steps Stored individual test-condition blocks

A PWM amplifier helps maintain stable testing voltage despite variations in the input source. Other functions include RMS current measurement, zero-crossing turn-on, controllable ramp-up, safety interlock and manual/automatic operation.

The 240 × 64 dot-matrix LCD, warning and status indicators, front-panel remote START/STOP and RS-232C, USB device and signal I/O support laboratory measurements and production inspection. GPIB is available as an option.

For 500 VA AC test capacity, see the GPT-9900 Series or the GPT-15000 Series.

Four Testing Configurations

Choose AC only, AC/DC, AC/DC with insulation resistance, or all three plus ground bond testing.

200 VA AC Withstand Capacity

AC withstand output reaches 5 kV with 200 VA rated load for applicable test conditions.

DC Withstand and IR Options

GPT-9802 and higher add up to 6 kV DC; GPT-9803 and GPT-9804 add insulation resistance measurement.

Stable PWM High-Voltage Output

An efficient PWM amplifier reduces the impact of input power fluctuations on test output.

Operator Protection and Control

Safety interlock, visual status indicators, zero-crossing turn-on and adjustable ramp-up support controlled testing.

Sequence Memory and Remote Interfaces

Save up to 100 test-condition blocks and control or log results with RS-232C, USB and signal I/O; optional GPIB.

Electronic Product Hipot Testing

Evaluate dielectric strength of electronic products using controlled AC withstand tests.

DC Dielectric Strength Testing

Apply DC withstand tests to suitable devices using GPT-9802, GPT-9803 or GPT-9804.

Insulation Resistance Checking

Verify insulation resistance on GPT-9803 or GPT-9804 during inspection.

Protective Earth Ground Bond Tests

Measure protective bonding resistance with GPT-9804 and suitable test connections.

Production Quality Assurance

Run repeatable manual or stored automatic procedures at incoming inspection or end-of-line stations.

Engineering Verification

Check electrical insulation performance of components during design evaluation and prototype validation.

Specification GPT-9801 GPT-9802 GPT-9803 GPT-9804
AC Withstand Yes Yes Yes Yes
DC Withstand — Yes Yes Yes
Insulation Resistance — — Yes Yes
Ground Bond — — — Yes
Maximum AC Capacity 200 VA 200 VA 200 VA 200 VA
AC Withstand Voltage 0.050–5.000 kV 0.050–5.000 kV 0.050–5.000 kV 0.050–5.000 kV
DC Withstand Voltage — 0.050–6.000 kV 0.050–6.000 kV 0.050–6.000 kV
AC Test Current (rated at 5 kV) 40 mA 40 mA 40 mA 40 mA
Display 240 × 64 dot matrix 240 × 64 dot matrix 240 × 64 dot matrix 240 × 64 dot matrix
Test Setup Memory Up to 100 blocks Up to 100 blocks Up to 100 blocks Up to 100 blocks
Control Interfaces RS-232C, USB, signal I/O RS-232C, USB, signal I/O RS-232C, USB, signal I/O RS-232C, USB, signal I/O
Optional Interface GPIB GPIB GPIB GPIB

Functions vary by model. The 200 VA rating is for AC withstand testing and does not represent a continuous power output or a DC rating. Test capacities, permissible currents and accuracy depend on output voltage and manufacturer specifications.
