One Oscilloscope ,Two Domains!

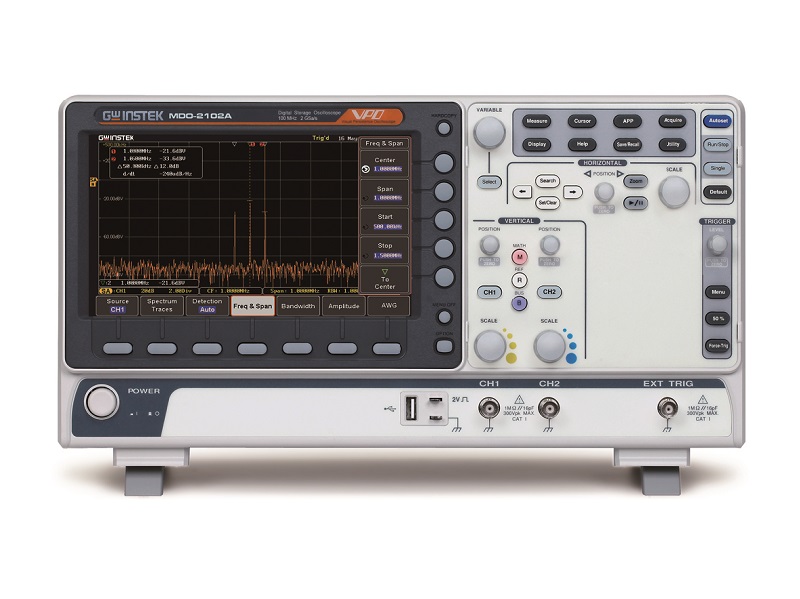

MDO-2000A is an advanced version of MDO-2000E. The selectable bandwidth range is upgraded to 300MHz. The full bandwidth ranges include 300MHz, 200MHz and 100MHz. The sampling rate has upgraded to Max. 2GSa/s and the memory depth has also been upgraded to 20M/CH. Hence, the three major specifications of oscilloscopes have been improved. The new models of the series feature 2 channels including MDO-2000A and MDO-2000AG. The entire series offers the functions of oscilloscope and spectrum analyzer. On top of that, MDO-2000AG features a dual-channel 25MHz arbitrary waveform generator. The new generation MDO-2000A series provides better sampling rate and memory depth for users to obtain more realistic signal integrity, and higher bandwidth selections meet the measurement requirements of higher frequencies.• 300/200/100MHz bandwidth selections ;2 channels. • Real time sample rate is 2GSa/s max. • Per Channel 20M memory depth and VPO waveform display technology. • Waveform update rate up to 120,000 wfms/s. • 8 “WVGA TFT LCD display. • Maximum 1M FFT provides higher frequency domain resolution measurements. • High, low and band pass filter functions. • 29,000 segmented memories and waveform search functions. • I2C/UART/CAN/LIN serial bus trigger and decoding function. • Data log function is able to track signal changes up to 1000 hours. • Network storage function. • Mask test function. • MDO-2000AG equips with a dual channel 25MHz AWG.
| MDO-2302AG | 300MHz, 2-channel, Digital Storage Oscilloscope, Spectrum Analyzer, dual channel 25MHz AWG. |
| MDO-2202AG | 200MHz, 2-channel, Digital Storage Oscilloscope, Spectrum Analyzer, dual channel 25MHz AWG. |
| MDO-2102AG | 100MHz, 2-channel, Digital Storage Oscilloscope, Spectrum Analyzer, dual channel 25MHz AWG. |
| MDO-2302A | 300MHz, 2-channel, Digital Storage Oscilloscope, Spectrum Analyzer. |
| MDO-2202A | 200MHz, 2-channel, Digital Storage Oscilloscope, Spectrum Analyzer. |
| MDO-2102A | 100MHz, 2-channel, Digital Storage Oscilloscope, Spectrum Analyzer. |
