Combined Environmental Reliability test system (Temperature/Humidity-vibration)

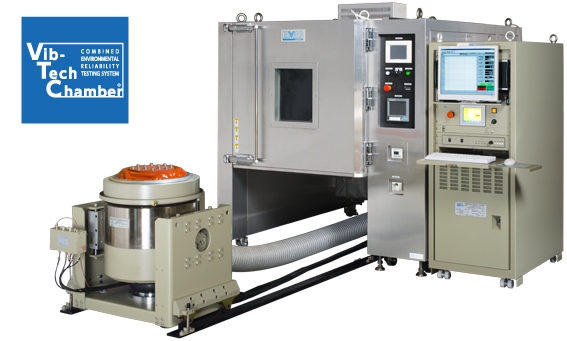

A combined environmental reliability test system is designed for performing vibration tests under specified temperature and humidity conditions. The combined reliability tests have been performed to evaluate the reliability of equipment from the early days in the field of aerospace industry. But in recent years, electronic devices such as semiconductors have rapidly advanced in technology, and complex materials made of plastic are used in the automobile industry. The combined reliability test today becomes indispensable to assure product reliability. Until now, temperature, humidity, and vibration these three tests have been done separately. However, EMIC's combined environmental reliability test system enables simultaneous performance. Therefore, the required test time can be reduced drastically, and the reliability of a test unit can be checked under more severe combined environmental conditions than conventional test methods. ※The vibration controller is mounted in the console rack. (Optional)■ Temperature test chamber (oven)
* Optional maximum temperature 200℃ ■ Temperature (humidity) test chamber
* Optional maximum temperature 200℃ ■ Model code table
* Optional maximum temperature 200℃
| Model | VC-062A | VC-082A | VC-102A |
|---|---|---|---|
| Internal Dimensions | 600W×700H×600D mm [Volume 252 L] | 800W×800H×800D mm [Volume 512 L] | 1000W×1000H×1000D mm [Volume 1000 L] |
| Temperature Range | RT+10～+100℃ RT+10～+150℃ RT+10～+180℃ | RT+10～+100℃ RT+10～+150℃ RT+10～+180℃ | RT+10～+100℃ RT+10～+150℃ RT+10～+180℃ |
| Temperature Change Rate (Rising) | 2℃/min (average) (+20～+100 ℃)2℃/min (average) (+20～+150 ℃)2℃/min (average) (+20～+180℃) (for standalone temperature test chamber) | 2℃/min (average) (+20～+100 ℃)2℃/min (average) (+20～+150 ℃)2℃/min (average) (+20～+180℃) (for standalone temperature test chamber) | 2℃/min (average) (+20～+100 ℃)2℃/min (average) (+20～+150 ℃)2℃/min (average) (+20～+180℃) (for standalone temperature test chamber) |
| Temperature Change Rate (Falling) | － | － | － |
| Test Chamber Movement Mechanism | Fixed Chamber Rail Moveable Chamber | Fixed Chamber Rail Moveable Chamber | Fixed Chamber Rail Moveable Chamber |
| Combination Method | Drawer Type Round Hole Type | Drawer Type Round Hole Type | Drawer Type Round Hole Type |
| Recorder | 180 mm 2-point 25 mm/H 100 mm 2-point 25 mm/H Hybrid Recorder (μR) Compact Flash Memory | 180 mm 2-point 25 mm/H 100 mm 2-point 25 mm/H Hybrid Recorder (μR) Compact Flash Memory | 180 mm 2-point 25 mm/H 100 mm 2-point 25 mm/H Hybrid Recorder (μR) Compact Flash Memory |
| Model | VC-062D | VC-082D | VC-102D |
|---|---|---|---|
| Internal Dimensions | 600W×700H×600D mm [Volume 252 L] | 800W×800H×800D mm [Volume 512 L] | 1000W×1000H×1000D mm [Volume 1000 L] |
| Temperature Range | -25～+100℃ -25～+150℃ -25～+180℃ -40～+100℃ -40～+150℃ -40～+180℃ -55～+100℃ -55～+150℃ -55～+180℃ -70～+100℃ -70～+150℃ -70～+180℃ | -25～+100℃ -25～+150℃ -25～+180℃ -40～+100℃ -40～+150℃ -40～+180℃ -55～+100℃ -55～+150℃ -55～+180℃ -70～+100℃ -70～+150℃ -70～+180℃ | -25～+100℃ -25～+150℃ -25～+180℃ -40～+100℃ -40～+150℃ -40～+180℃ -55～+100℃ -55～+150℃ -55～+180℃ -70～+100℃ -70～+150℃ -70～+180℃ |
| Temperature Change Rate (Rising) | 2℃/min (average) (+20～+100 ℃)2℃/min (average) (+20～+150 ℃)2℃/min (average) (+20～+180℃)(for standalone temperature test chamber) | 2℃/min (average) (+20～+100 ℃)2℃/min (average) (+20～+150 ℃)2℃/min (average) (+20～+180℃)(for standalone temperature test chamber) | 2℃/min (average) (+20～+100 ℃)2℃/min (average) (+20～+150 ℃)2℃/min (average) (+20～+180℃)(for standalone temperature test chamber) |
| Temperature Change Rate (Falling) | 1℃/min (average) (+20～-40 ℃)1℃/min (average) (+20～-55 ℃)1℃/min (average) (+20～-70 ℃)(for standalone temperature test chamber) | 1℃/min (average) (+20～-40 ℃)1℃/min (average) (+20～-55 ℃)1℃/min (average) (+20～-70 ℃)(for standalone temperature test chamber) | 1℃/min (average) (+20～-40 ℃)1℃/min (average) (+20～-55 ℃)1℃/min (average) (+20～-70 ℃)(for standalone temperature test chamber) |
| Humidity Range | 30～98％RH | 30～98％RH | 30～98％RH |
| Test Chamber Movement Mechanism | Fixed Chamber Rail Moveable Chamber | Fixed Chamber Rail Moveable Chamber | Fixed Chamber Rail Moveable Chamber |
| Combination Method | Drawer Type Round Hole Type | Drawer Type Round Hole Type | Drawer Type Round Hole Type |
| Recorder | 180 mm 2-point 25 mm/H 100 mm 2-point 25 mm/H Hybrid Recorder (μR) Compact Flash Memory | 180 mm 2-point 25 mm/H 100 mm 2-point 25 mm/H Hybrid Recorder (μR) Compact Flash Memory | 180 mm 2-point 25 mm/H 100 mm 2-point 25 mm/H Hybrid Recorder (μR) Compact Flash Memory |
| Specification | Model Code | |
|---|---|---|
| Internal Dimensions | 600W×700H×600D mm [Volume 252 L] 800W×800H×800D mm [Volume 512 L] 1000W×1000H×1000D mm [Volume 1000 L] | VC-062 VC-082 VC-102 |
| Test Chamber Type | Oven Temperature Test Chamber Temperature and Humidity Test Chamber | A B D |
| Refrigerator Condensation Method (Refrigerator Cooling Method) | Air Cooled Water Cooled None | A W - |
| Test Chamber Movement Mechanism | Fixed Chamber Rail Moveable Chamber | F M |
| Combination Method | Drawer Type Detachable Bottom Plate Type Round Hole Type | X Y Z |
| Temperature Range | RT+10～+100℃ RT+10～+150℃ RT+10～+180℃ -25～+100℃ -25～+150℃ -25～+180℃ -40～+100℃ -40～+150℃ -40～+180℃ -55～+100℃ -55～+150℃ -55～+180℃ -70～+100℃ -70～+150℃ -70～+180℃ | 01 02 03 21 22 23 31 32 33 41 42 43 51 52 53 |
| Temperature and Humidity Control Method | Digital Controller LCD Touch Key Program Controller | M1 P3 |
| Recorder | 5.7-inch TFT Color LCD, 6ch Input, SD Card, Optional: 12ch Input, LAN Connection 5.7-inch TFT Color LCD, 10ch Input (Expandable up to 100ch), SD Card, LAN Connection | T X |
