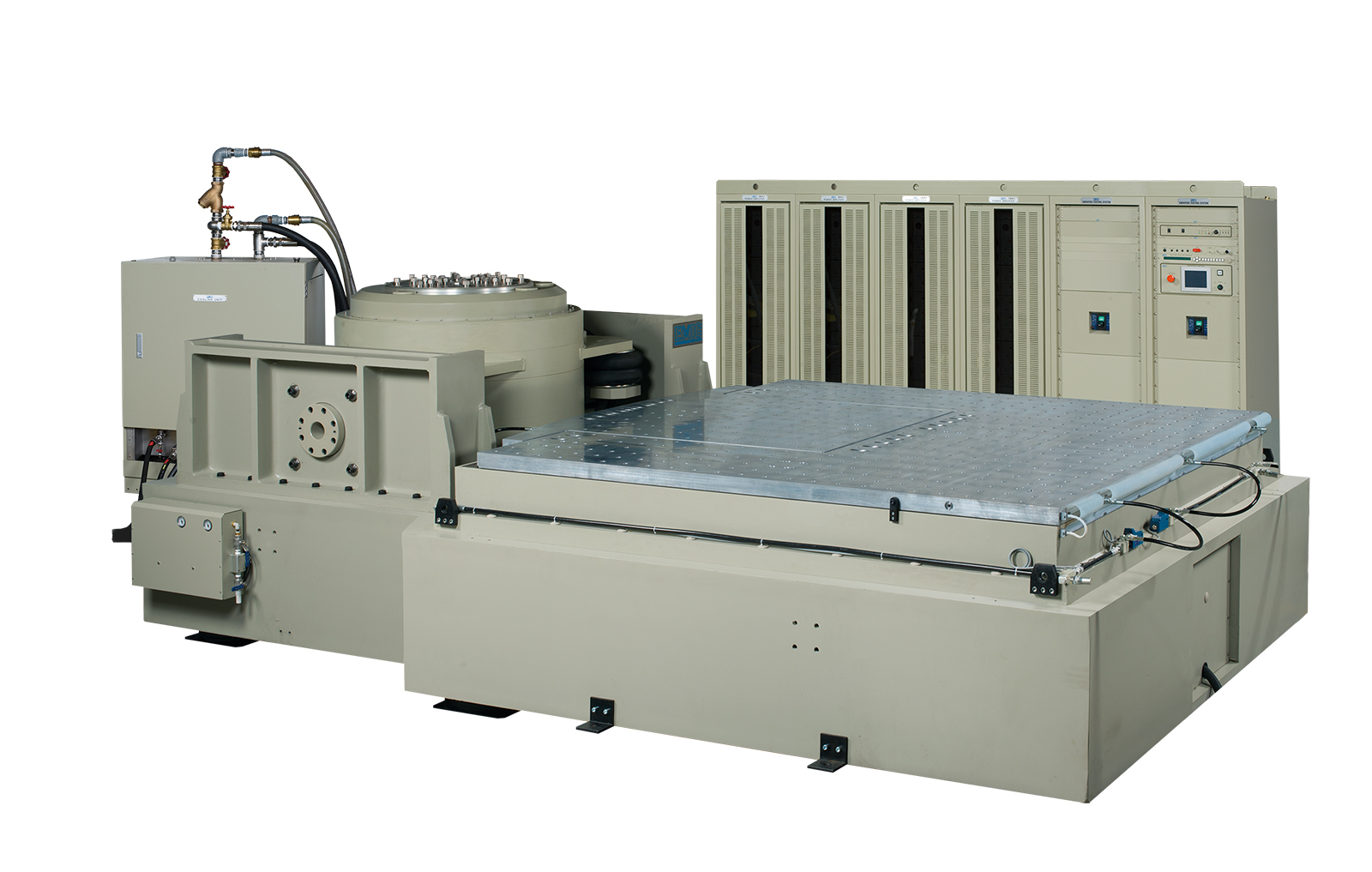

Large Water-cooled Vibration Testing SystemThe FC series is a large system best suited for high-rated force testing on a large specimen. A higher rated force can be produced since the water-cooled method is more efficient than the air-cooled one. It includes vibration tests for large electronic devices, auto and aircraft parts, electronic devices in the air, satellites, and defense and aerospace systems. The vibration test required by military or international standards, such as MIL, NDS, ASTM, IEC, ISO, BS, and JIS, can be completed with this series.
| Model | FC-060K/60 | FC-080K/60 | FC-100K/60 | FC-200K/60 |
|---|---|---|---|---|
| Excitation Force Sine | 60.0 kN0-p | 80.0 kN0-p | 100.0 kN0-p | 200.0 kN0-p |
| Excitation Force Random | 60 .0 kNrms | 80 .0 kNrms | 100.0 kNrms | 160.0 kNrms |
| Excitation Force Shock | 150.0 kN0-p | 200.0 kN0-p | 250.0 kN0-p | 400.0 kN0-p |
| Frequency Range | ～2000 Hz | ～2000 Hz | ～2000 Hz | ～2000 Hz |
| Maximum Acceleration | 667 m/s2 (Note 1) | 889 m/s2 (Note 1) | 1000 m/s2(Note 1) | 1000 m/s2(Note 1) |
| Maximum Velocity | 1.8 m/s | 1.8 m/s | 1.8 m/s | 1.78 m/s |
| Maximum Displacement | 60 mmp-p | 60 mmp-p | 60 mmp-p | 51 mmp-p |
| Maximum Payload | 1000 kg | 1000 kg | 1000 kg | 2000 kg |
| Power Consumption | 100 .0 kVA | 100.0 kVA | 154 .0 kVA | 351.5 kVA |
| Moving Part Mass | 90.0 kg | 90.0 kg | 90.0 kg | 130.0 kg |
| Allowable Eccentric Moment | 1500 N・m | 1500 N・m | 1500 N・m | 5000 N・m |
| Cooling Method | Water-Cooling | Water-Cooling | Water-Cooling | Water-Cooling |
| Cooling water volume | 140 L/min (Note 2) | 162 L/min (Note 2) | 305 L/min (Note 2) | 688 L/min (Note 2) |
| Vibration Generator Model | 9100-AWW/LA | 9100-AWW/LA | 9100-AWW/LA | 9200-AWW/LA |
| Power Amplifier Model | 368A-1610B-3BAY100 | 368A-1612B-3BAY100 | 368A-1614B-3BAY100 | 368A-3232A-200K |
| Console Rack Model | CRD-2000T | CRD-2000T | RD-2000T | CRD-2000F-200K |
| Moving Part Mounting Dimensions | ⌀450 mm | ⌀450 mm | ⌀450 mm | ⌀590 mm |
| Vibration Generator Dimensions | 1489W×1338H×1149D mm | 1489W×1338H×1149D mm | 1489W×1338H×1149D mm | 1905W×1348H×1473D mm |
| Console Rack Dimensions | 1662W×2059H×1030D mm | 1662W×2059H×1030D mm | 1662W×2059H×1030D mm | 3324W×2059H×1030D mm |
| Vibration Generator Mass | 4800 kg | 4800 kg | 4800 kg | 8182 kg |
| Console Rack Mass | 1650 kg | 1650 kg | 1650 kg | 3950 kg |
| Cooling unit weight | 700 kg | 700 kg | 700 kg | 700 kg |
Power Requirements: 3-phase AC 200V, 50/60Hz. Lower Frequency Limit: Depends on the vibration measurement equipment used. Export Regulations: When exporting the vibration testing system overseas, export approval from the Ministry of Economy, Trade and Industry (METI) may be required depending on specifications such as excitation force. Please contact us for more details. Note 1: The maximum acceleration is limited and should not be considered a theoretical value.
Note 2: The water temperature is set at 32°C.
