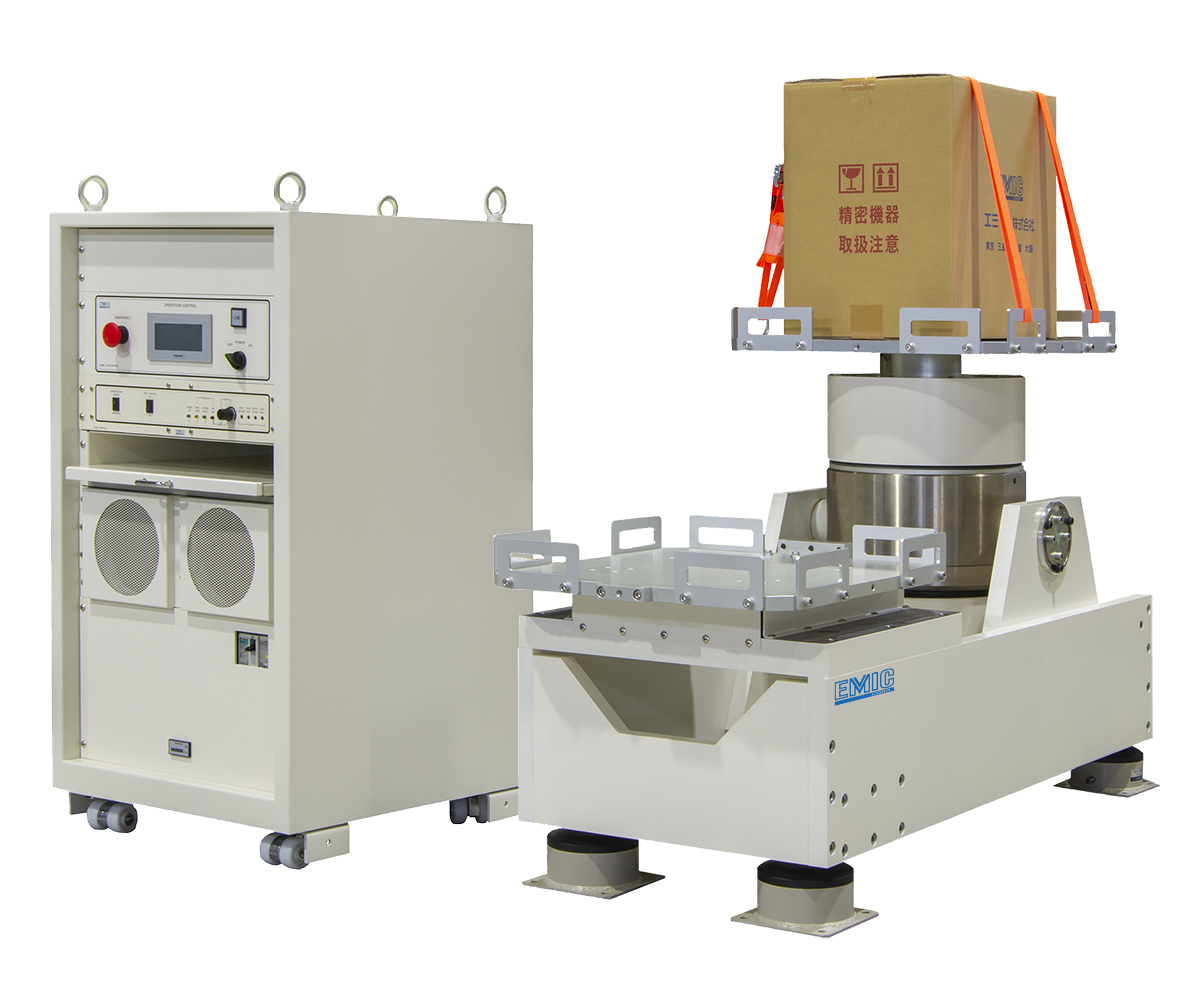

Transport Testing System FT-02K/100: Comprehensive Vibration Testing
The FT-02K/100, is a versatile transport packaging testing system designed to meet a wide range of transport test standards, including ASTM D4169-16 and ISTA 3A for truck transport at low vibration frequencies around 1Hz. This system covers a broad frequency range from 1Hz to 300Hz, making it suitable for various testing scenarios.• Low-Frequency Testing: Capable of performing low-frequency random transport tests starting from 1Hz. • Cost-Effective: Significantly reduces installation costs compared to medium and large displacement devices. • Energy Efficient: Utilizes permanent magnets for energy savings. • Compact Design: Space-efficient design allows for flexible installation in various locations.
| Model | FT-02K/100 |
|---|---|
| Maximum Excitation Force | 2000 N |
| Frequency Range | 1 to 300 Hz |
| Shaker Table Size | 500 × 500 mm |
| Load Capacity | Up to 60 kg |
| Weight | 262 kg |
| Power Supply | 3-phase AC 200V, 50/60Hz |
