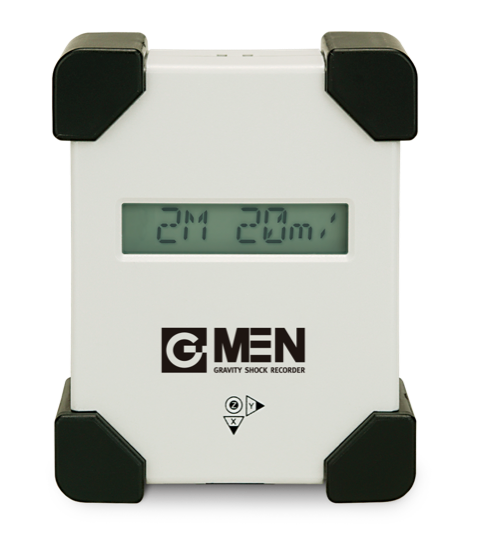

G-MEN GR01
The G-MEN GR01 can switch between 3-axis static acceleration ranges of up to 2G and 1G, and records with a minimum sampling period of 1 msec. The main unit is also equipped with a temperature/humidity sensor that records changes in 3-axis acceleration, temperature, and humidity over time. In addition, the main unit is equipped with an LCD panel that allows the user to check recorded data and setting conditions. Recorded data can be easily imported to a PC via the USB interface of the main unit using the standard accessory software “G-Trace.net2,” and can be immediately displayed in graphs and printed. Recorded data can be saved in CSV format, allowing data analysis with spreadsheet software according to the purpose of measurement. For example, it is ideal for micro vibration measurement of trains, automobiles, aircraft, ships, elevators, etc.
• The main unit is equipped with a 3-axis (X, Y, Z) acceleration sensor, enabling recording with minimum sampling (1 msec). • Acceleration sensor range can be switched between 2G and 1G at maximum. • Temperature and humidity can also be recorded since the main unit is equipped with a temperature/humidity sensor. • Recorded data can be retrieved from the built-in USB interface. • Recorded data can be immediately displayed as a graph using the standard accessory software "G-Trace.net2". • Recorded data can be saved in CSV format, allowing data analysis with spreadsheet software to suit the purpose of measurement. • Recorded data can be retrieved even after the battery life has expired due to non-volatile memory. • Recording method can be selected from four types: one-time, endless, hazardous end, and trace mode.
| Type | G-MEN GR01 |
| Measuring item | 3-axis acceleration, temperature and humidity. |
| Acceleration sensor | Static acceleration: 2G (±10%) (The range also has 1G) |
| Response frequency | 0Hz to 100Hz |
| Minimum sampling period | 1msec |
| Measuring resolution | 0.02G (Resolution for range 2G is 0.02G Resolution for range 1G is 0.01G) |
| Temperature range | 0 to 50°C (±3°C) |
| Humidity range | 30 to 90% (±10%) |
| Recording interval | Select from 15 ways: 1 sec, 5, 10, 15, 20, 30, 1 min, 2, 3, 4, 5, 10, 15, 20, 30 |
| Recording capacity | 65,500 data |
| Operation display | LCD display |
| Record retention | Non-volatile memory |
| Communication method | USB (Type-C) 2.0 compliant |
| Power supply | AA alkaline batteries (LR6) x 2 |
| Battery life | Approx. 45 days (at 1 msec sampling cycle, depending on measurement environment and battery performance) |
| Specification temperature and humidity range | 0 to 50°C 70%RH or less (no condensation) |
| Dimensions | 75.5 (H) x 60.5 (W) x 33 (D) mm |
| Weight | Approx. 135 g (including batteries) |
| Accessories | USB cable, AA alkaline batteries (2 pcs), caution sticker (1 pc) Mounting brackets (1 pair), dedicated software (CD-ROM) |
