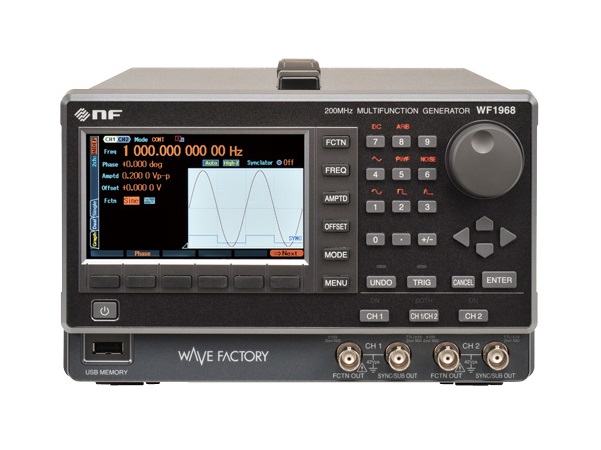

Maximum frequency: 200 MHz (sine wave), 70 MHz (square wave, pulse)!
Our function generators have been evolving along with our customers’ desires and our determination to satisfy them. Our function generatorsboast accurate and stable output, an abundance of output waveforms, various oscillation modes for various purposes, outstanding user-friendliness and the flexible generation of waveforms that engineers need.• Maximum frequency: 200 MHz (sine wave), 70 MHz (square wave, pulse) • Maximum output voltage: 20 Vp-p/open (10 Vp-p/50 Ω, 110 MHz or less) • Waveform amplitude resolution: Approx. 16 bit • Various types of output waveforms:
Sine, square, pulse, ramp, noise, DC, parameter-variable and arbitrary
• Square wave and pulse with high resolution, variable duty of 0.0001% • High-speed, large-capacity arbitrary waveform: 420 MS/s, 4 Mi* words * Mi represents 220 = 1048576 • Various oscillation modes:Continuous, burst/trigger/gate, internal/external modulation, sweep, burst and modulation, sweep and modulation
• Sequence function • “Synclator” function:Automatically synchronizes a signal input from an external source to the main output signal. Interfaces: USB, GPIB, LAN (optional)
• Control software:Arbitrary waveform/sequence editing, remote control and logging
• Ultrasonic motor drive test, differential input / balanced input test, LCD panel operation test, digital circuit evaluation test, evaluation of various ICs. • Simulation of gear rotation signal/Inverter evaluation/ABS・Power Steering Device Test/ECU・ sensor operation test. • Echo canceller test, amplifier and speaker tone burst test / linearity measurement, wireless communication equipment evaluation test.
