The New World in TMA
The Hitachi TMA (Thermo mechanical Analyzer) is used for evaluating expansion or shrinkage of samples across a wide temperature range. These parameters are essential to design engineers, and our TMA analyzers also used for quality assurance or outgoing inspection to ensure a customer’s product is precisely to specification. Hitachi’s versatile TMA can also perform other analytical tasks, such as creep measurement, stress relaxation measurement, heat shrinkage-stress measurement, stress-strain curve as well as DMA measurement in a single instrument.- High reliability measurement with high sensitivity sensor
- Multiple applications in a single unit thanks to superior load control technology
- High accuracy with superior temperature control

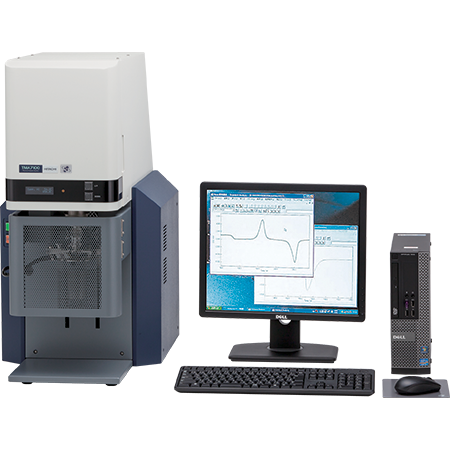

TMA7100
- Sample Cylinder: Quartz, metal
- Temperature Range: -170 to 600°C
- TMA Measurement Range: ±5 mm
- TMA Sensitivity: 0.01 µm
- Load Range: ±5.8 N
- Scan Rate: 0.01 to 100°C/min
- Maximum Sample Size: Expansion; Φ10×L25 mmTension; W1×T5×L25 mm
- Sample Length Measurement: Automated Measurement
TMA7300
- Sample Cylinder: Alumina
- Temperature Range: Ambient to 1,500°C
- TMA Measurement Range: ±5 mm
- TMA Sensitivity: 0.01 µm
- Load Range: ±5.8 N
- Scan Rate: 0.01 to 100°C/min
- Maximum Sample Size: Expansion; Expansion; Φ10×L25 mm
- Sample Length Measurement: Automated Measurement
