SEKONIC C-4000 Spectrometer

SEKONIC C-4000 Spectrometer

Portable spectral light measurement for lighting evaluation, with CCT, illuminance, CRI, TM-30 and Bluetooth-enabled app connectivity.

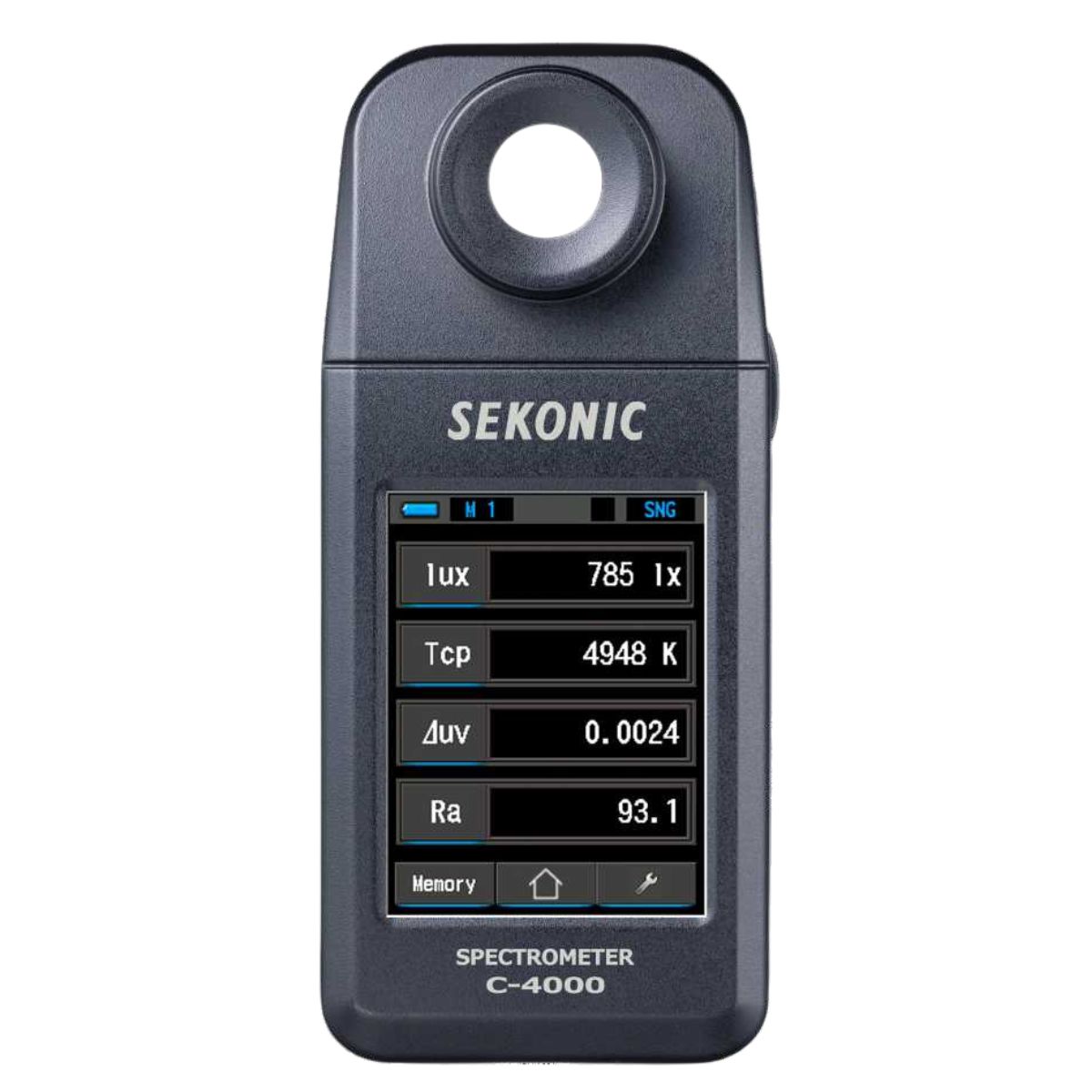

The SEKONIC C-4000 is a handheld incident-light spectrometer built around a CMOS linear image sensor. It characterizes light sources in the 380–780 nm band and displays illuminance, correlated color temperature (CCT), color rendering metrics and chromaticity directly on its color touch screen.

For design checks and field audits, the C-4000 measures from 5 to 10,000 lx and displays CCT from 1,600 to 40,000 K, subject to the stated light-source and measurement conditions. Its compact form supports work in architectural lighting, LED quality control, offices, retail environments and laboratories.

Bluetooth connectivity links the meter with the SEKONIC LD app for remote capture and visualization. Advanced report creation and certain documentation functions require an app upgrade; availability and device compatibility should be checked with Sekonic.

380–780 nmVisible spectral wavelength range
5–10,000 lxSpecified illuminance measurement range
1,600–40,000 KDisplayed correlated color temperature
Bluetooth + LDRemote measurement with supported app

Visible-Light Spectral Measurement

CMOS-based incident-light measurements characterize light in the 380–780 nm wavelength band.

Illuminance and CCT

Read 5 to 10,000 lx and 1,600 to 40,000 K CCT under specified operating conditions.

CRI and TM-30 Indicators

Assess color rendering using CRI Ra and TM-30-18 Rf/Rg alongside chromaticity information.

Field-Friendly Touchscreen

A 2.7-inch color touch screen presents essential lighting parameters without a computer.

Bluetooth App Connectivity

Operate and review measurements on supported smartphones and tablets with the SEKONIC LD app.

Portable Power and Data

Operate on two AA batteries or USB bus power; USB-C supports utility and firmware functions.

Architectural Lighting Commissioning

Evaluate illuminance and CCT during lighting installation, verification and commissioning.

LED Product Quality Control

Check color performance and repeatability across luminaires and LED batches.

Retail and Display Lighting

Compare lighting quality across shelves, showrooms and merchandise displays.

Office and Hospitality Lighting

Investigate color consistency and illuminance in offices, hotels and public spaces.

Museum and Exhibition Lighting

Document lighting conditions around sensitive displays and exhibition areas.

Lighting Research and Prototyping

Compare visible spectra, chromaticity and color rendering during development.

ManufacturerSEKONIC
Model / manufacturer catalog SKUC-4000 / 401-400
Sensor and measuring geometryCMOS linear image sensor; incident-light spectrometer
Spectral wavelength range380–780 nm
Illuminance5–10,000 lx (0.46–929 fc)
Correlated color temperature1,600–40,000 K
Color-rendering outputsCRI Ra: −100.0 to 100.0; TM-30 Rf: 0–100; Rg: 0–200
Additional measurementsChromaticity x,y; Δuv; illuminance lx/fc
Illuminance accuracy, source A±5% ±1 digit from 5 to 3,000 lx; ±7.5% ±1 digit above 3,000 lx
Chromaticity accuracyx,y: ±0.003 at 800 lx, source A
Measurement timeApproximately 2–15 s depending on light conditions
MemoryUp to 99 measurements
Display2.7-inch color touch screen
ConnectivityBluetooth; USB Type-C
Power2 × AA batteries or USB bus power
Operating environment5–35°C; 85% RH or less at 35°C, non-condensing
Dimensions / weightApprox. 62 × 140 × 30 mm; 140 g

The upper and lower display limits are not a guarantee of measurement accuracy at all values. SEKONIC LD app features vary between free and paid versions; check current OS support. C-4000 has distinct capabilities from the C-7000.
