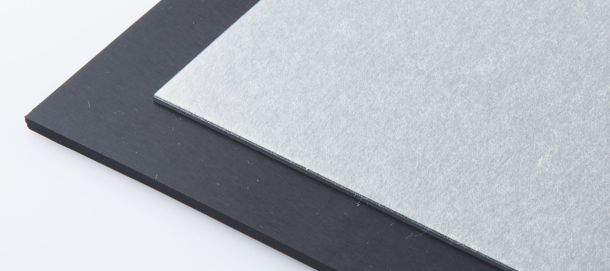

Microwave absorber have excellent absorption performance and effectively absorb grazing-incidence microwave from 2 GHz to 94 GHz.
Active tag(300MHz), UWB(3-10GHz), ZigBee(2.45GHz), Wi-Fi(2.45 & 5.2GHz), Cell phone (800MHz-2GHz), GPS(1.6GHz), UHF-RFID(920MHz ), ETC(5.8GHz), Aviation radar (10GHz), etc. To solve RF communication trouble by random reflection in R&D laboratory, QC test, and real fieldMS - H series have excellent absorption performance and effectively absorb grazing-incidence microwave from 5.8 GHz to 94 GHz. We can design and provide small lot of any frequency not listed on list below
Cover film and Al. reflection sheet are attached depending as requestETC Toll Gate: To be fitted on ceiling to diminish RF communication at ETC toll gate due to random reflection by using MS-058 microwave absorber sheet. We measure the RF signal strength, design and draw draft, work construction. Parabola antenna To erase the reflected RF signal against metal structure nearby parabola antenna Cable transmission To reduce transmission noise of cable from connectors of 16GHz RF module by using molded absorber
| Product Name | Microwave Absorber Sheet | ||
|---|---|---|---|
| Material Number | MS-025 | MS-058 | MS-100 |
| Features | Lightweight and conformable | ||
| Applied Frequency | 2.45GHz | 5.8GHz | 10GHz |
| Standard Thickness | 3.2mm | 1.8mm | 1.8mm |
| Standard Size | 200 x 200mm | ||
| Operation Temperature | -40°C ~ 80°C | ||
| Materials | Silicon Rubber | ||
| Product Name | Microwave Absorber Sheet | ||
|---|---|---|---|
| Material Number | MS-240 | MS-280 | MS-770TKS |
| Features | Lightweight and conformable | ||
| Applied Frequency | 24GHz | 28GHz | 76.5GHz |
| Standard Thickness | 1.2mm | 1.1mm | 2.0mm |
| Standard Size | 200 x 200mm | ||
| Operation Temperature | -40°C ~ 80°C | ||
| Materials | Silicon Rubber | ||
