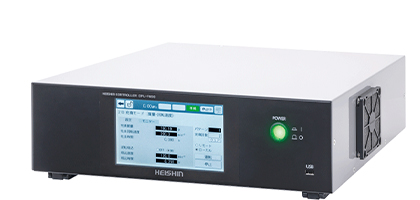

HEISHIN DPU-F650 Mohno Dispenser Controller

Multifunction Control for Precision Fluid Dispensing

The HEISHIN DPU-F650 is a multifunction controller for compatible Mohno Dispensers, helping users configure dispensing behavior through rotational-speed calculation, saved operating data and optional factory-network connectivity.

By entering the desired application shape, operators can use the controller’s automatic calculation function to determine rotational speed for the dispensing process. The unit also stores setting data and operation history to assist maintenance and troubleshooting.

50–750 W Supported motor capacity classes
EtherNet/IP Optional field-network interface
IP20 Enclosure protection rating
10–11.5 kg Manufacturer-listed weight range

The DPU-F650 is the standard controller in the HEISHIN DPU-F600 family; the DPU-F610 is a separate HD-specific model and must not be treated as the same controller. Single-phase and three-phase AC power supply versions are listed, but available supply configurations depend on the connected motor capacity.

Pair this controller with a compatible dispenser such as the HEISHIN ND Mohno Dispenser after confirming electrical and mechanical compatibility. Optional cables and accessories should be specified at quotation.

Application-Shape-Based Setup

Calculate rotational speed from the entered application shape to simplify programming.

50–750 W Motor Support

Supports 50, 100, 200, 400 and 750 W compatible motor classes.

Optional EtherNet/IP Connectivity

Integrate supported dispenser control into a factory network using the optional communication feature.

Settings and History Storage

Retain control settings and operation history to support repeatable setup and diagnostics.

Multiple AC Power Configurations

Select appropriate single- or three-phase AC version for the motor and plant supply.

Available Peripheral Options

Power, motor and encoder cables, pressure sensors and foot switches are listed as options.

Robotic Adhesive Dispensing

Control compatible robot-mounted dispense heads for repeated application paths.

Automotive Gasket Application

Program dispensing speed for sealant patterns on compatible parts.

Electronics Assembly

Control repeatable resin or lubricant application in electronics production.

Automated Manufacturing Lines

Connect compatible equipment via optional EtherNet/IP.

Process Setup and Changeover

Save settings to support recurring product and dispensing recipes.

Maintenance and Troubleshooting

Review the stored operation history when investigating process faults.

Specification DPU-F650
Product class Multifunction Mohno Dispenser controller
Applicable motor capacity 50 / 100 / 200 / 400 / 750 W
Power supply choices Single-phase 100–115 V AC; single-phase 200–230 V AC; three-phase 200–230 V AC
Power supply compatibility Version availability depends on the selected motor capacity
Network connectivity EtherNet/IP optional
Settings Application-shape-based rotational-speed calculation
Data retention Setting data and operation history
Protection rating IP20
Weight 10–11.5 kg (configuration-dependent)
Optional items Power cable, motor cable, encoder cable, pressure sensor, foot switch
CE-marking specification Manufacturer lists available versions since April 2025
Operating temperature (Denkei listing) 5–40 °C
Operating humidity (Denkei listing) 5–85% RH, non-condensing
Control signal arrangement (Denkei listing) PNP source or NPN sink

Motor and power combinations require configuration confirmation. The DPU-F610 is a separate 10 W/24 V DC HD-specific controller. Items marked “Denkei listing” appear in the existing Denkei product export and were not separately confirmed on the manufacturer overview page.
